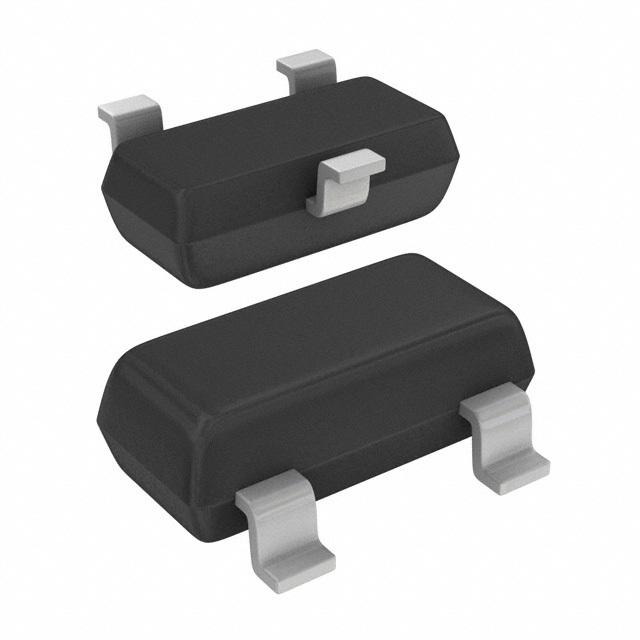

| Part Number | 2N7002T,215 | 2N7002,215 | 2N7002E,215 | 2N7002F,215 | 2N7002K,215 | 2N7002P,215 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) | 300mA (Ta) | 385mA (Ta) | 475mA (Ta) | 340mA (Ta) | 360mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 500mA, 10V | 5Ohm @ 500mA, 10V | 3Ohm @ 500mA, 10V | 2Ohm @ 500mA, 10V | 3.9Ohm @ 500mA, 10V | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | 2.5V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA | 2V @ 1mA | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | 0.69 nC @ 10 V | 0.69 nC @ 10 V | - | 0.8 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±30V | ±30V | ±30V | ±15V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V | 50 pF @ 10 V | 50 pF @ 10 V | 50 pF @ 10 V | 40 pF @ 10 V | 50 pF @ 10 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 830mW (Ta) | 830mW (Ta) | 830mW (Ta) | 830mW (Ta) | 830mW (Ta) | 350mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23 (TO-236AB) | TO-236AB | TO-236AB | TO-236AB | SOT-23 (TO-236AB) | TO-236AB |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
