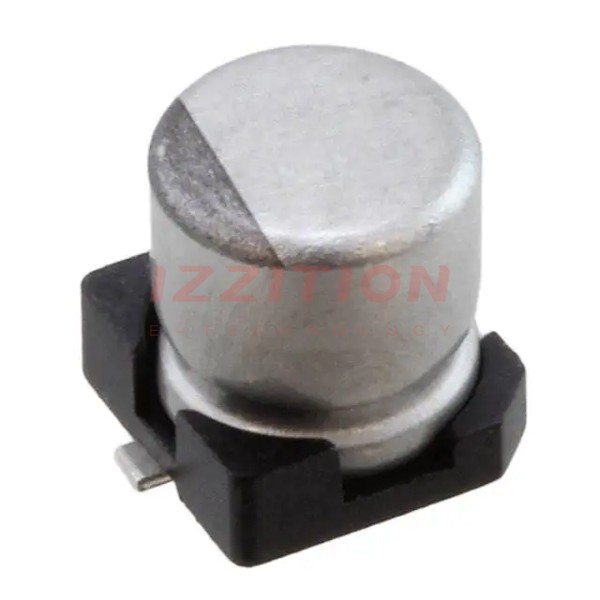

| Part Number | UZS0G470MCL1GB | UZS0J470MCL1GB | UZR0G470MCL1GB |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | Polar |
| Ratings | - | - | AEC-Q200 |
| Applications | General Purpose | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz | 45 mA @ 120 Hz | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz | 67.5 mA @ 10 kHz | 49.5 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
