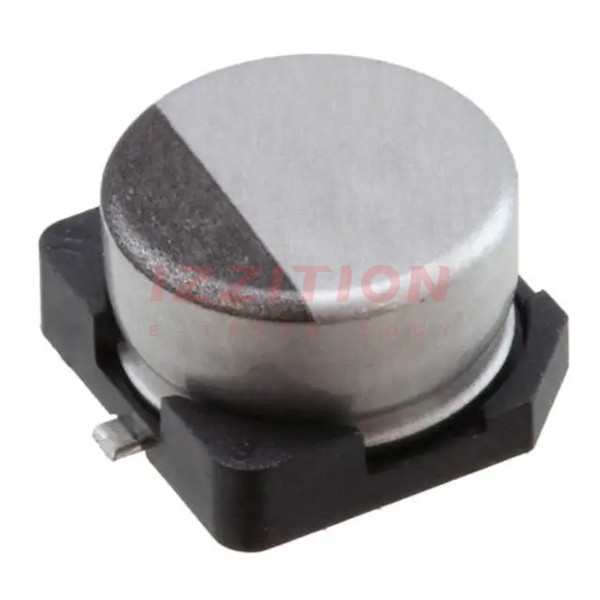

| Part Number | UZR1H100MCL1GB | UZR1V100MCL1GB | UZT1H100MCL1GB | UZS1H100MCL1GB | UZG1H100MCL1GB | UZR1C100MCL1GB | UZR1E100MCL1GB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Active | Not For New Designs | Active | Not For New Designs | Not For New Designs |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 50 V | 50 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | - | - | - | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | - | - | - | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | General Purpose | General Purpose | General Purpose | Automotive | Automotive |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz | 29 mA @ 120 Hz | 26 mA @ 120 Hz | 33 mA @ 120 Hz | 26 mA @ 120 Hz | 23 mA @ 120 Hz | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz | 43.5 mA @ 10 kHz | 39 mA @ 10 kHz | 49.5 mA @ 10 kHz | 39 mA @ 10 kHz | 34.5 mA @ 10 kHz | 40.5 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) | 0.156" (3.95mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.156" (3.95mm) | 0.156" (3.95mm) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
