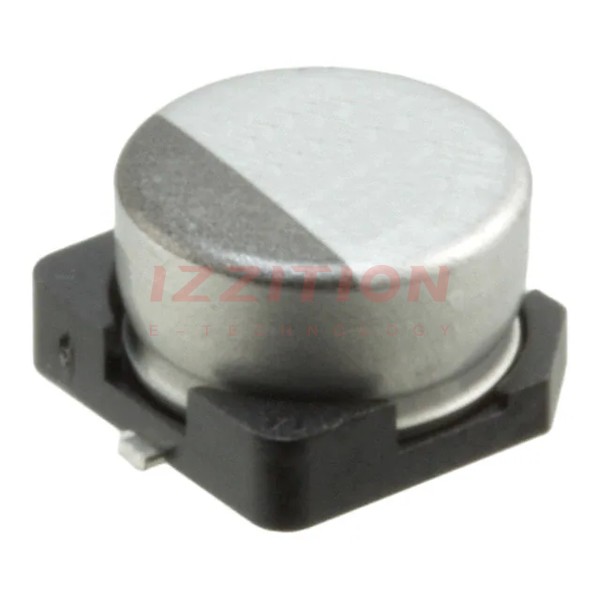

| Part Number | UZG1E220MCL1GB | UZG1V220MCL1GB | UZS1E220MCL1GB | UZR1E220MCL1GB | UZG1A220MCL1GB | UZG1C220MCL1GB |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Not For New Designs | Not For New Designs | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 35 V | 25 V | 25 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | - | - | - | Polar | - | - |
| Ratings | - | - | - | AEC-Q200 | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz | 36 mA @ 120 Hz | 42 mA @ 120 Hz | 42 mA @ 120 Hz | 24 mA @ 120 Hz | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz | 54 mA @ 10 kHz | 63 mA @ 10 kHz | 63 mA @ 10 kHz | 36 mA @ 10 kHz | 39 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) | 0.156" (3.95mm) | 0.181" (4.60mm) | 0.156" (3.95mm) | 0.156" (3.95mm) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
