Nichicon-UZD1E5R6MCL1GB - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	5.6 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	18 mA @ 120 Hz
Ripple Current @ High Frequency:	27 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.126" (3.20mm)
Surface Mount Land Size:	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

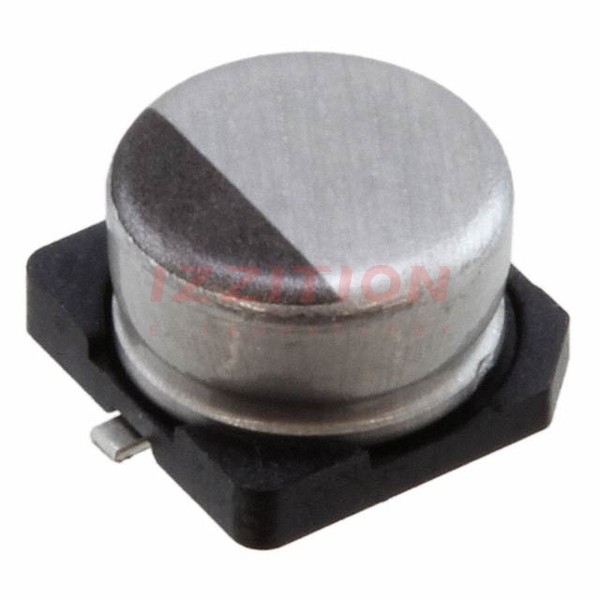

Nichicon UZD1E5R6MCL1GB
