Nichicon-UZD1E2R2MCL1GB - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	7 mA @ 120 Hz
Ripple Current @ High Frequency:	10.5 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.157" Dia (4.00mm)
Height - Seated (Max):	0.126" (3.20mm)
Surface Mount Land Size:	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

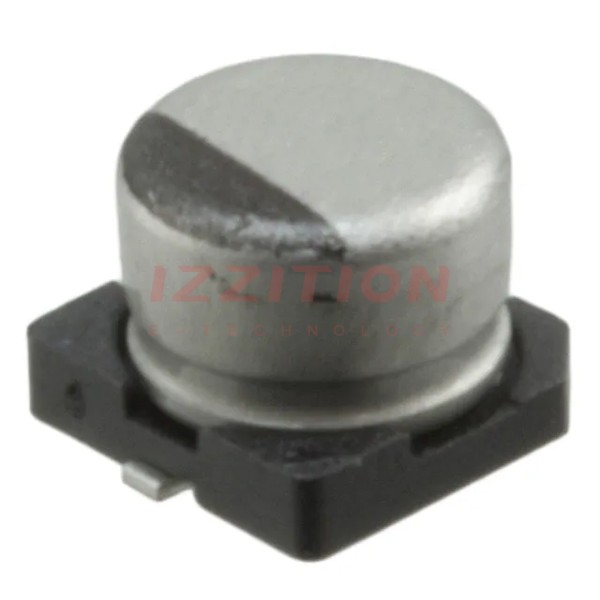

Nichicon UZD1E2R2MCL1GB
