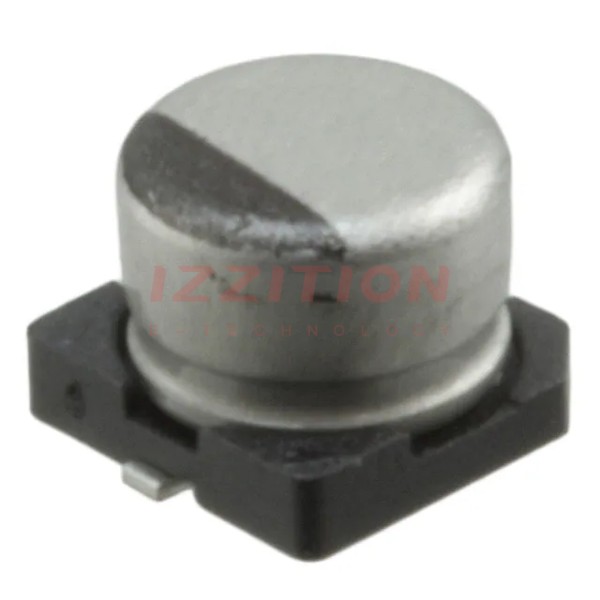

| Part Number | UZD0G220MCL1GB | UZD0J220MCL1GB |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz | 42 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
