Please send RFQ , we will respond immediately.

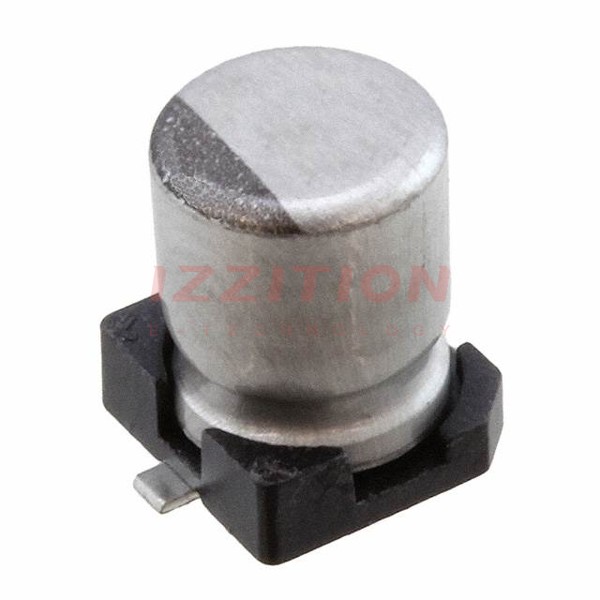

| Part Number | UWZ1HR22MCL1GB | UWX1HR22MCL1GB |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 0.22 µF | 0.22 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | High Temperature Reflow | General Purpose |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | 3.9 mA @ 10 kHz | 3 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
