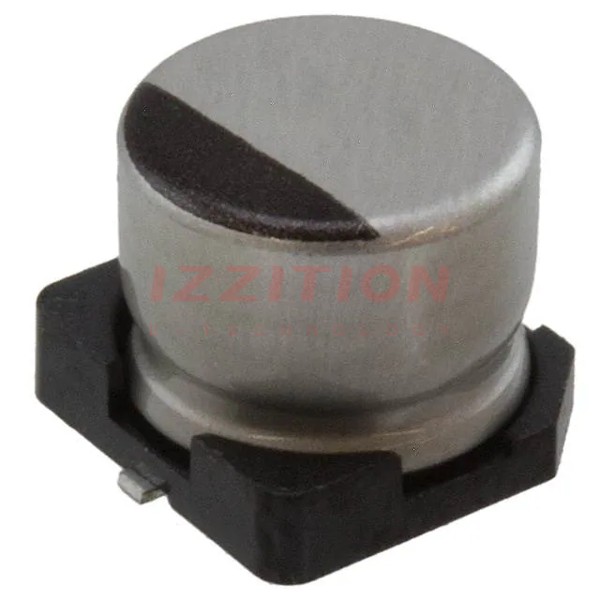

| Part Number | UWZ1A101MCL1GB | UWZ1C101MCL1GB |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | High Temperature Reflow | High Temperature Reflow |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 10 kHz | 90 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
