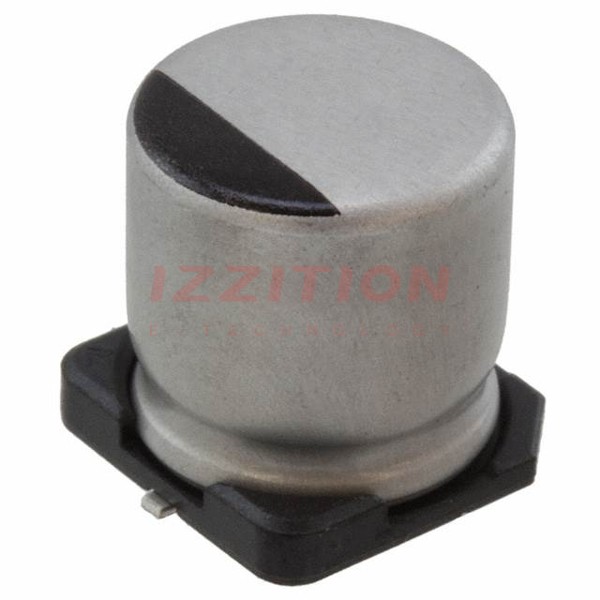

| Part Number | UWS1H101MCL1GS | UWS1V101MCL1GS | UWS1H151MCL1GS | UWS1A101MCL1GS | UWS1C101MCL1GS | UWS1E101MCL1GS |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Applications | High Temperature Reflow | High Temperature Reflow | High Temperature Reflow | High Temperature Reflow | High Temperature Reflow | High Temperature Reflow |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz | 175 mA @ 120 Hz | 238 mA @ 120 Hz | 70 mA @ 120 Hz | 125 mA @ 120 Hz | 145 mA @ 120 Hz |
| Ripple Current @ High Frequency | 253.5 mA @ 10 kHz | 227.5 mA @ 10 kHz | 309.4 mA @ 10 kHz | 91 mA @ 10 kHz | 162.5 mA @ 10 kHz | 188.5 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.413" (10.50mm) | 0.394" (10.00mm) | 0.224" (5.70mm) | 0.244" (6.20mm) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
