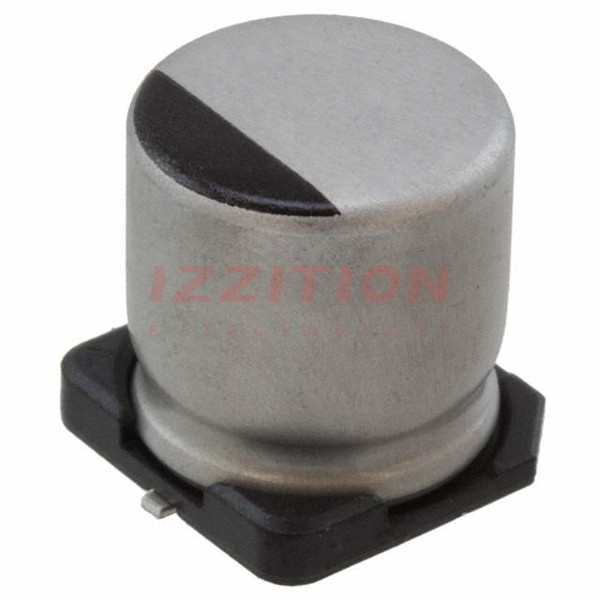

| Part Number | UWS1A681MCL1GS | UWS1C681MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 680 µF | 680 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - |
| Ratings | - | - |
| Applications | High Temperature Reflow | High Temperature Reflow |
| Ripple Current @ Low Frequency | 374 mA @ 120 Hz | 396 mA @ 120 Hz |
| Ripple Current @ High Frequency | 486.2 mA @ 10 kHz | 514.8 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
