Nichicon-UWH1H100MCL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	10 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	24 mA @ 120 Hz
Ripple Current @ High Frequency:	36 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.244" (6.20mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

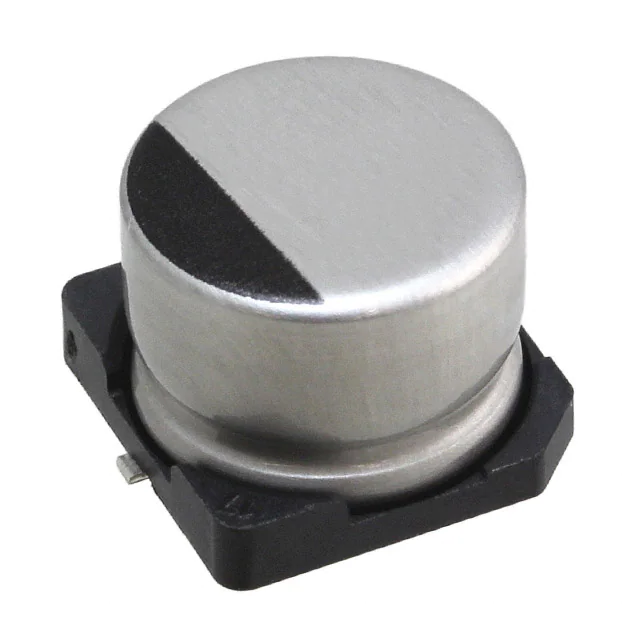

Nichicon UWH1H100MCL1GS
