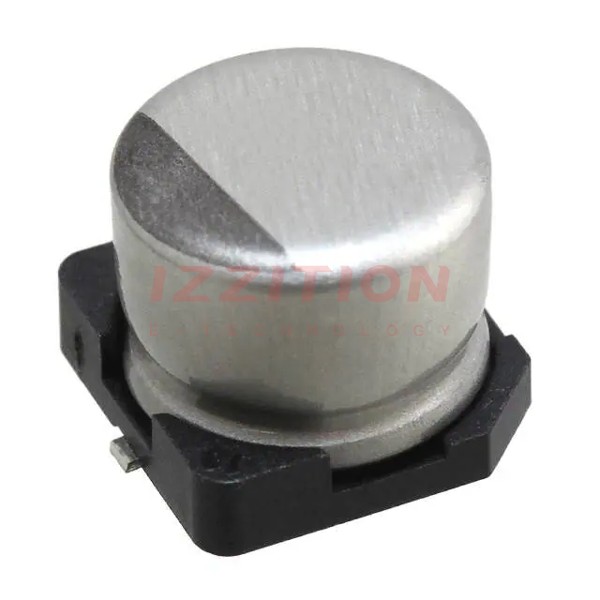

| Part Number | UWG1V220MCL1GB | UWJ1V220MCL1GB | UWP1V220MCL1GB | UWF1V220MCL1GB | UWG1C220MCL1GB | UWG1E220MCL1GB |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Not For New Designs | Active | Not For New Designs | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | - | Polar | Bi-Polar | - | - | - |
| Ratings | AEC-Q200 | - | - | - | AEC-Q200 | AEC-Q200 |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz | 45 mA @ 120 Hz | 54 mA @ 120 Hz | 57.5 mA @ 120 Hz | 47.5 mA @ 120 Hz | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz | 67.5 mA @ 10 kHz | 81 mA @ 10 kHz | 115 mA @ 100 kHz | 95 mA @ 100 kHz | 140 mA @ 100 kHz |
| Impedance | 1 Ohms | - | - | 1.3 Ohms | 1.8 Ohms | 1 Ohms |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.213" (5.40mm) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
