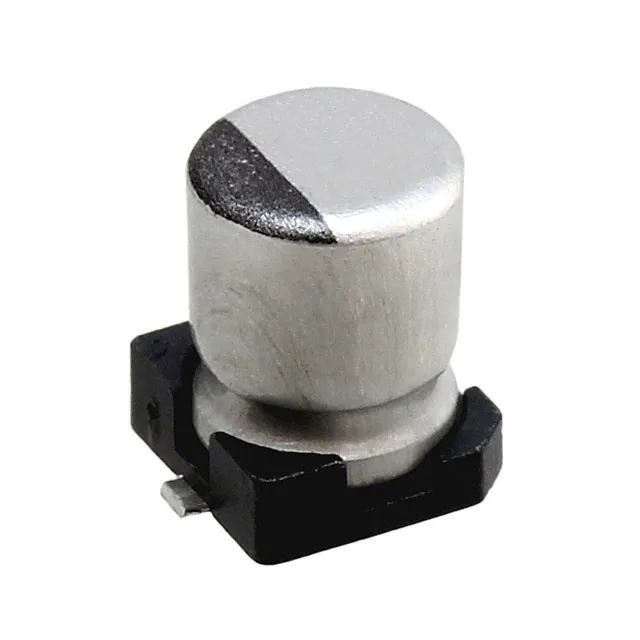

| Part Number | UWG1H2R2MCL1GB | UWJ1H2R2MCL1GB | UWG1V2R2MCL1GB | UWP1H2R2MCL1GB |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Not For New Designs | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 35 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | - | Polar | - | Bi-Polar |
| Ratings | AEC-Q200 | - | AEC-Q200 | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz | 13 mA @ 120 Hz | 30 mA @ 120 Hz | 13 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 100 kHz | 19.5 mA @ 10 kHz | 60 mA @ 100 kHz | 19.5 mA @ 10 kHz |
| Impedance | 5 Ohms | - | 3 Ohms | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) | 0.217" (5.50mm) | 0.213" (5.40mm) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
