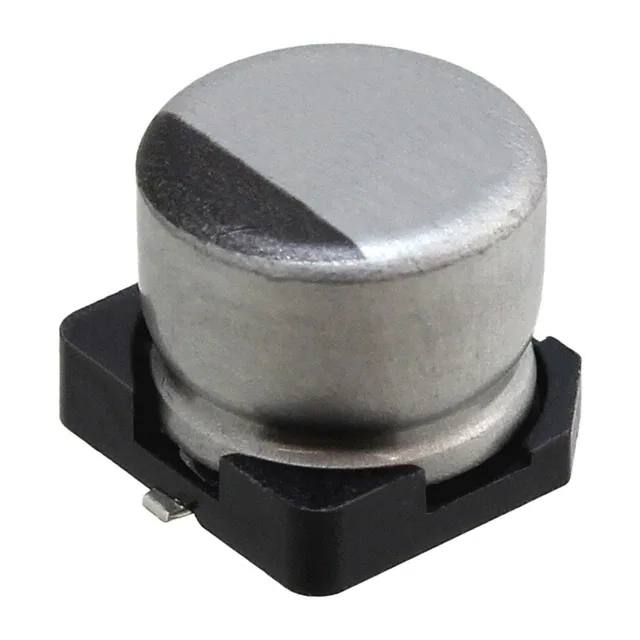

Nichicon-UWF1A680MCL1GB - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	68 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	57.5 mA @ 120 Hz
Ripple Current @ High Frequency:	115 mA @ 100 kHz
Impedance:	1.3 Ohms
Lead Spacing:	-
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.217" (5.50mm)
Surface Mount Land Size:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Nichicon UWF1A680MCL1GB
