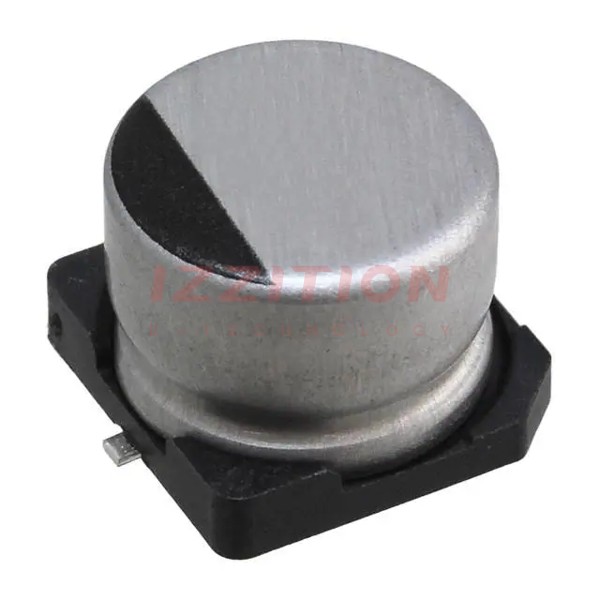

| Part Number | UWF1A101MCL1GS | UWG1A101MCL1GS | UWF1A151MCL1GS | UWF1C101MCL1GS | UWH1A101MCL1GS | UWD1A101MCL1GS |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Not For New Designs | Not For New Designs | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V | 16 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 125°C | -55°C ~ 105°C |
| Polarization | - | - | - | - | Polar | Polar |
| Ratings | - | AEC-Q200 | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz | 115 mA @ 120 Hz | 75 mA @ 120 Hz | 75 mA @ 120 Hz | 58 mA @ 120 Hz | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz | 230 mA @ 100 kHz | 150 mA @ 100 kHz | 150 mA @ 100 kHz | 87 mA @ 10 kHz | 230 mA @ 100 kHz |
| Impedance | 800 mOhms | 400 mOhms | 800 mOhms | 800 mOhms | - | 440 mOhms |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.244" (6.20mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
