Nichicon-UWF0J330MCL1GB - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	33 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	40 mA @ 120 Hz
Ripple Current @ High Frequency:	80 mA @ 100 kHz
Impedance:	2.6 Ohms
Lead Spacing:	-
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.217" (5.50mm)
Surface Mount Land Size:	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

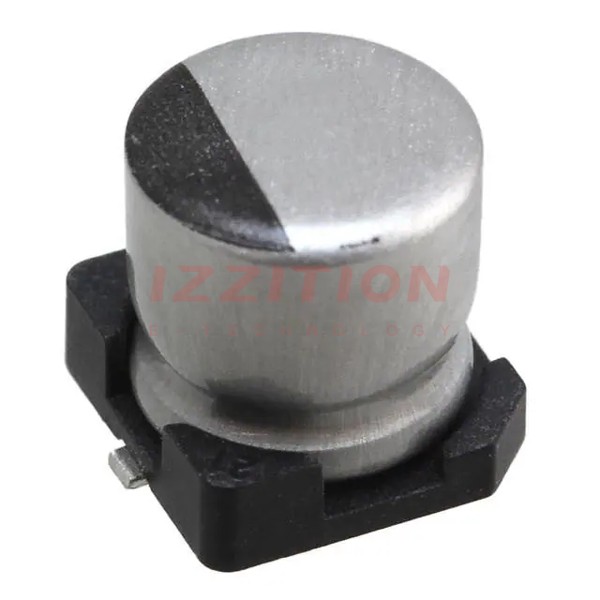

Nichicon UWF0J330MCL1GB
