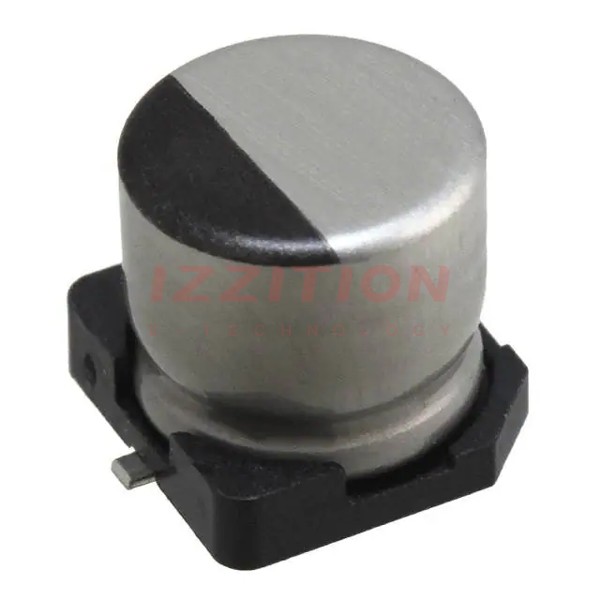

| Part Number | UWD1H220MCL1GS | UWG1H220MCL1GS | UWD1H221MCL1GS | UWD1V220MCL1GS | UWD1H270MCL1GS | UWD1A220MCL1GS | UWD1C220MCL1GS | UWD1E220MCL1GS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 220 µF | 22 µF | 27 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 35 V | 50 V | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | - | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | AEC-Q200 | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 82.5 mA @ 120 Hz | 60 mA @ 120 Hz | 335 mA @ 120 Hz | 75 mA @ 120 Hz | 92.5 mA @ 120 Hz | 40 mA @ 120 Hz | 75 mA @ 120 Hz | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 100 kHz | 120 mA @ 100 kHz | 670 mA @ 100 kHz | 150 mA @ 100 kHz | 185 mA @ 100 kHz | 80 mA @ 100 kHz | 150 mA @ 100 kHz | 150 mA @ 100 kHz |
| Impedance | 880 mOhms | 700 mOhms | 180 mOhms | 760 mOhms | 680 mOhms | 1.8 Ohms | 760 mOhms | 760 mOhms |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.256" (6.50mm) | 0.394" (10.00mm) | 0.228" (5.80mm) | 0.303" (7.70mm) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
