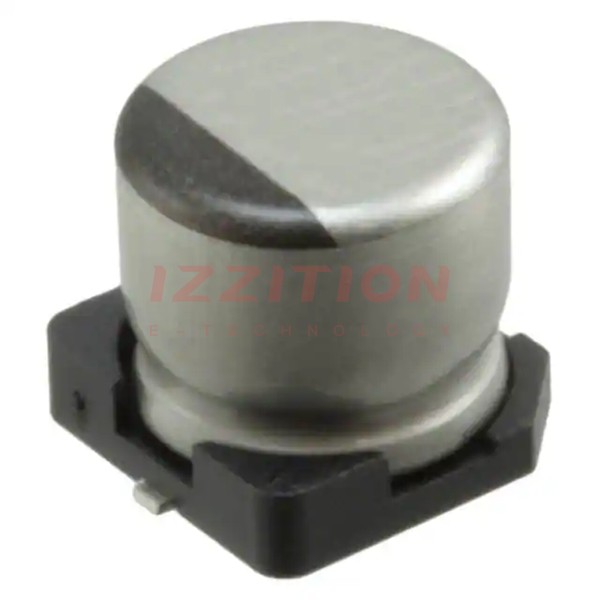

| Part Number | UWD1A101MCL1GS | UWD1V101MCL1GS | UWD1C101MCL1GS | UWF1A101MCL1GS | UWD1H101MCL1GS | UWD1A102MCL1GS | UWD1E101MCL1GS | UWD1A151MCL1GS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Not For New Designs | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 1000 µF | 100 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 35 V | 16 V | 10 V | 50 V | 10 V | 25 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | - | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz | 225 mA @ 120 Hz | 115 mA @ 120 Hz | 75 mA @ 120 Hz | 150 mA @ 120 Hz | 335 mA @ 120 Hz | 140 mA @ 120 Hz | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz | 450 mA @ 100 kHz | 230 mA @ 100 kHz | 150 mA @ 100 kHz | 300 mA @ 100 kHz | 670 mA @ 100 kHz | 280 mA @ 100 kHz | 230 mA @ 100 kHz |
| Impedance | 440 mOhms | 170 mOhms | 440 mOhms | 800 mOhms | 340 mOhms | 90 mOhms | 340 mOhms | 440 mOhms |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.394" (10.00mm) | 0.240" (6.10mm) | 0.256" (6.50mm) | 0.413" (10.50mm) | 0.394" (10.00mm) | 0.315" (8.00mm) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
