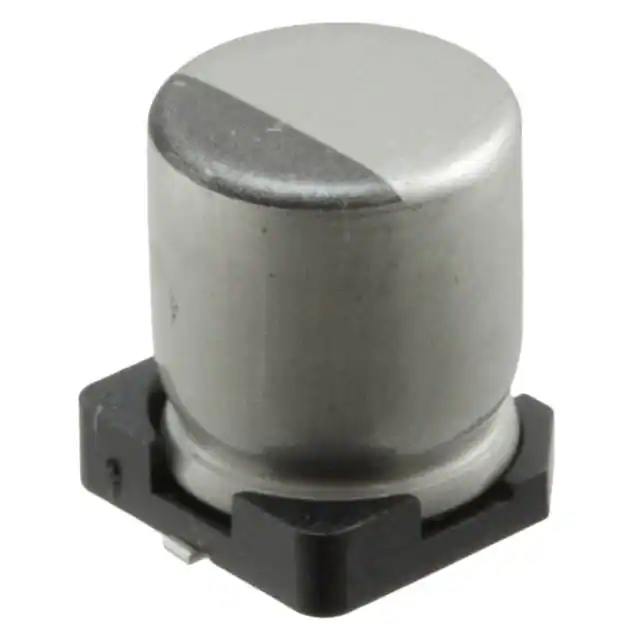

| Part Number | UWD0J331MCL1GS | UWD0J330MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 330 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz | 150 mA @ 100 kHz |
| Impedance | 340 mOhms | 760 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
