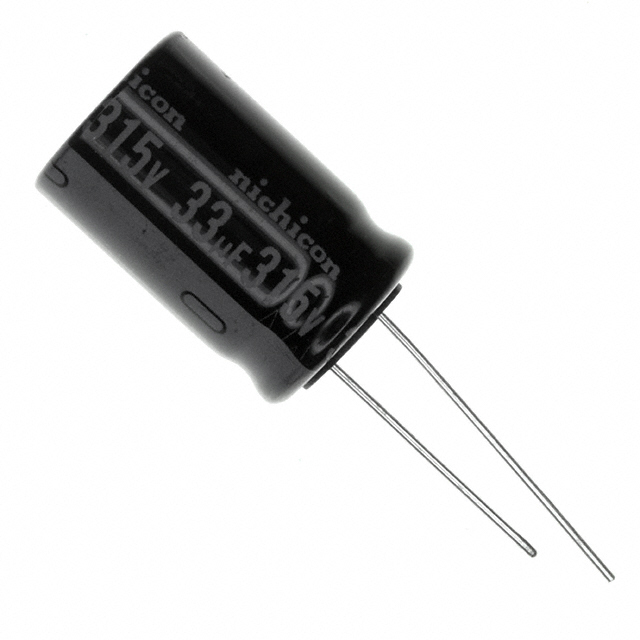

| Part Number | UVZ2F330MHD1TN | UVZ2V330MHD1TN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 315 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 312 mA @ 10 kHz | 312 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
