Nichicon-UVY1A473MRD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	47000 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	3.57 A @ 120 Hz
Ripple Current @ High Frequency:	4.1055 A @ 10 kHz
Impedance:	-
Lead Spacing:	0.492" (12.50mm)
Size / Dimension:	0.984" Dia (25.00mm)
Height - Seated (Max):	2.047" (52.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

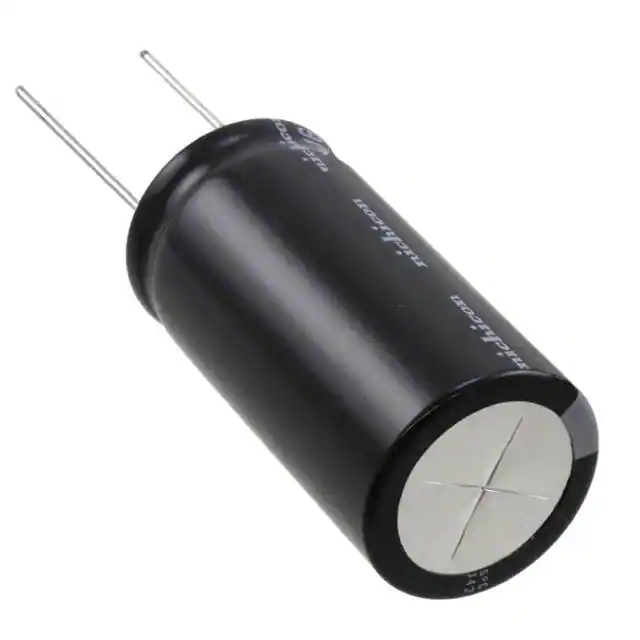

Nichicon UVY1A473MRD
