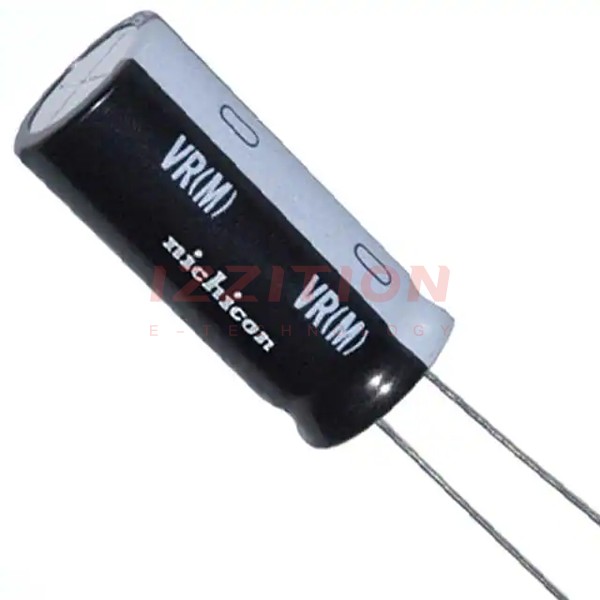

| Part Number | UVR2W330MHA | UVR2W330MHD | UVR2F330MHA | UVR2G330MHA | UVR2V330MHA |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 315 V | 400 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz | 230 mA @ 120 Hz | 275 mA @ 120 Hz | 300 mA @ 120 Hz | 275 mA @ 120 Hz |
| Ripple Current @ High Frequency | 368 mA @ 10 kHz | 368 mA @ 10 kHz | 440 mA @ 10 kHz | 480 mA @ 10 kHz | 440 mA @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.063" (27.00mm) | 1.299" (33.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
