Please send RFQ , we will respond immediately.

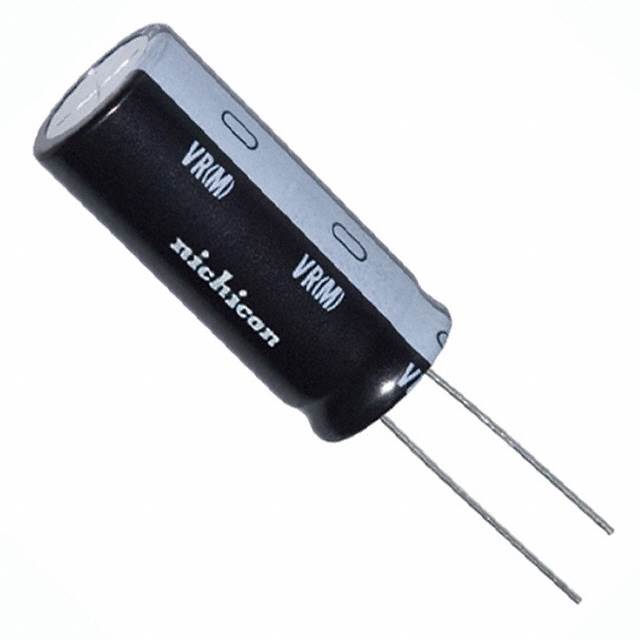

| Part Number | UVR2E331MRA | UVR2E331MRD | UVR2E331MRA6 | UVR2F331MRA | UVR2D331MRA |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V | 250 V | 315 V | 200 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz | 1.17 A @ 120 Hz | 970 mA @ 120 Hz | 1.25 A @ 120 Hz | 1.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.3455 A @ 10 kHz | 1.3455 A @ 10 kHz | 1.1155 A @ 10 kHz | 2 A @ 10 kHz | 1.2995 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) | 2.047" (52.00mm) | 1.260" (32.00mm) | 2.047" (52.00mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
