Please send RFQ , we will respond immediately.

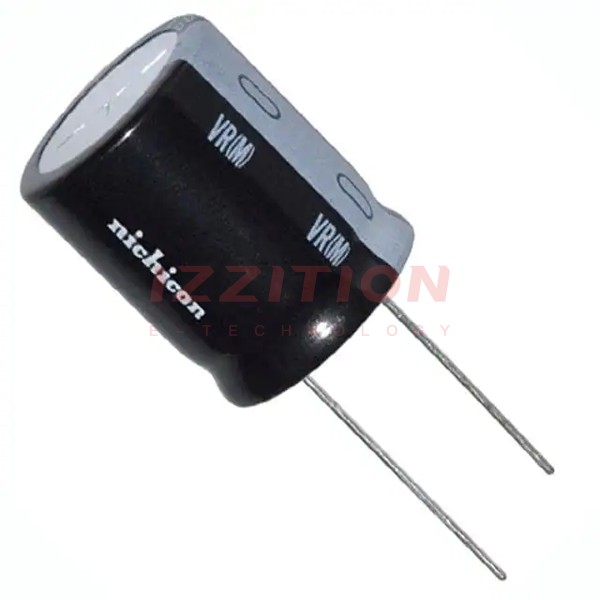

| Part Number | UVR2C471MRA6 | UVR2C471MRD6 | UVR2D471MRA6 | UVR2C471MRA |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete |
| Capacitance | 470 µF | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 160 V | 200 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.29 A @ 120 Hz | 1.29 A @ 120 Hz | 1.55 A @ 120 Hz | 1.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.064 A @ 10 kHz | 2.064 A @ 10 kHz | 1.7825 A @ 10 kHz | 1.6215 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.654" (42.00mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
