Please send RFQ , we will respond immediately.

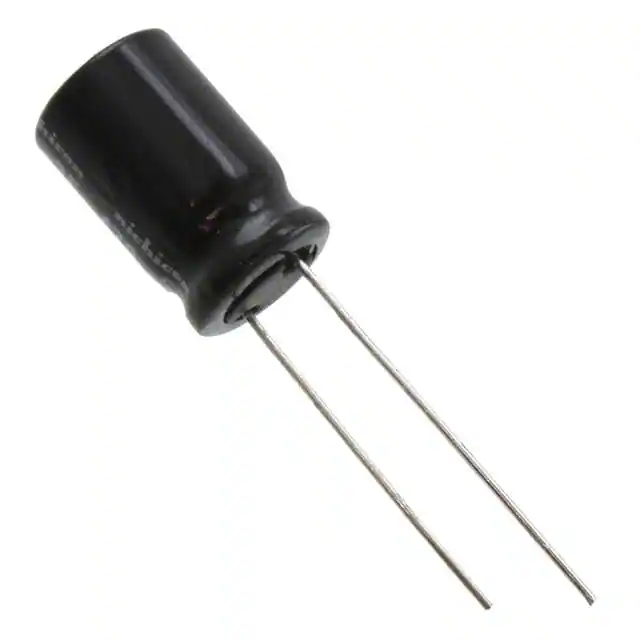

| Part Number | UVR1H152MHD | UVR1H102MHD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 1500 µF | 1000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 1.5525 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | 0.197" (5.00mm) |
| Size / Dimension | - | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | - | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
