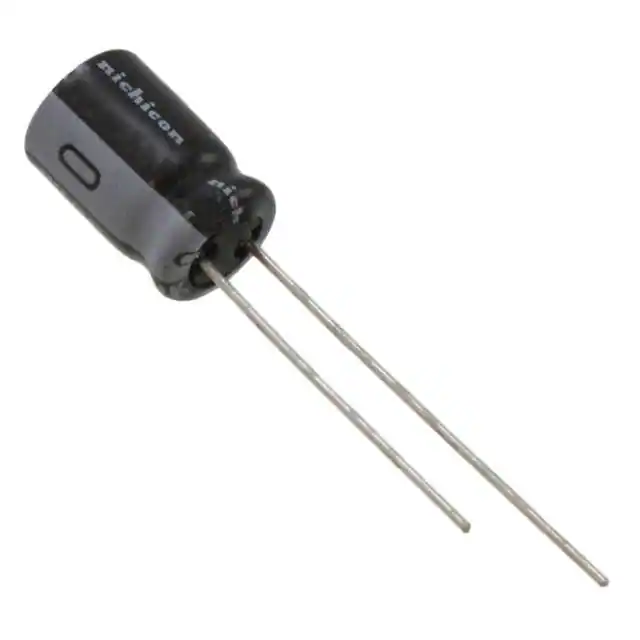

| Part Number | UVK2V4R7MPD | UVK2W4R7MPD | UVK2G4R7MPD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 450 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz | 46 mA @ 120 Hz | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 88 mA @ 10 kHz | - | 96 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
