Nichicon-UUX1C101MCL6GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	111 mA @ 120 Hz
Ripple Current @ High Frequency:	144.3 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.315" (8.00mm)
Surface Mount Land Size:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

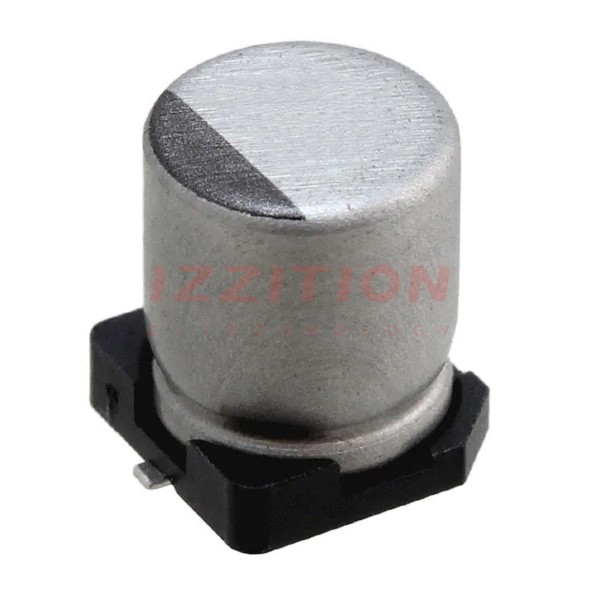

Nichicon UUX1C101MCL6GS
