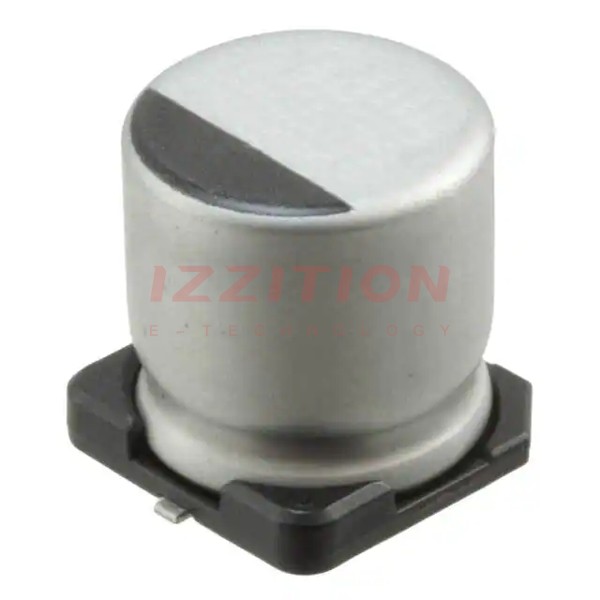

| Part Number | UUX0J471MNL1GS | UUX0J471MNL6GS | UUR0J471MNL1GS |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Not For New Designs |
| Capacitance | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz | 316 mA @ 120 Hz | 265 mA @ 120 Hz |
| Ripple Current @ High Frequency | 442 mA @ 10 kHz | 410.8 mA @ 10 kHz | 344.5 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
