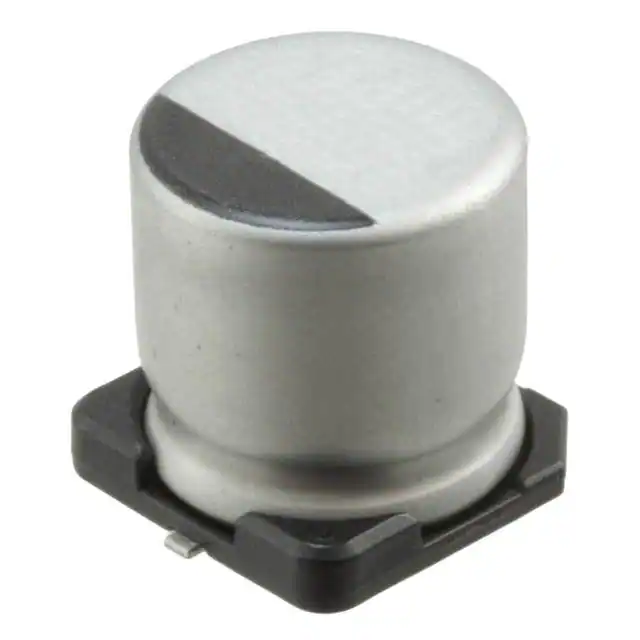

| Part Number | UUX0J102MNL1GS | UUR0J102MNL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Not For New Designs |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | - |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 643.5 mA @ 10 kHz | 520 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
