UUT1HR47MCL1GS
  • Share:

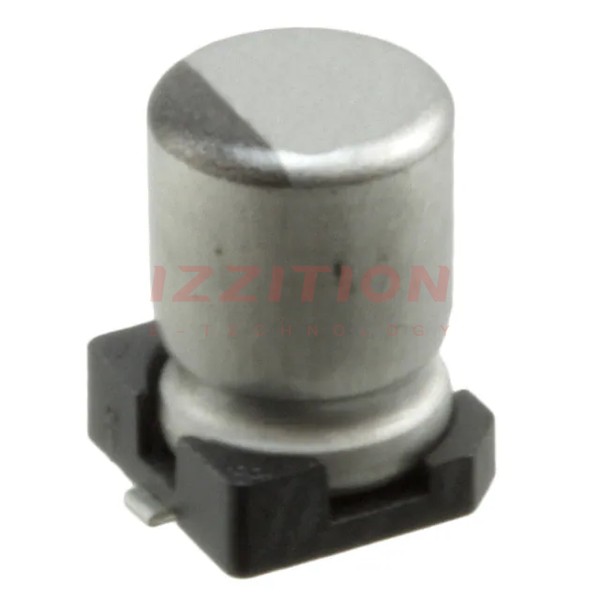

Nichicon UUT1HR47MCL1GS

Manufacturer No:
UUT1HR47MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
UUT1HR47MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM 0.47UF 20% 50V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:0.47 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:5.7 mA @ 10 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.157" Dia (4.00mm)
Height - Seated (Max):0.240" (6.10mm)
Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

-
603

Please send RFQ , we will respond immediately.
