Nichicon-UUT1H010MCL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	6.2 mA @ 120 Hz
Ripple Current @ High Frequency:	9.3 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.157" Dia (4.00mm)
Height - Seated (Max):	0.240" (6.10mm)
Surface Mount Land Size:	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

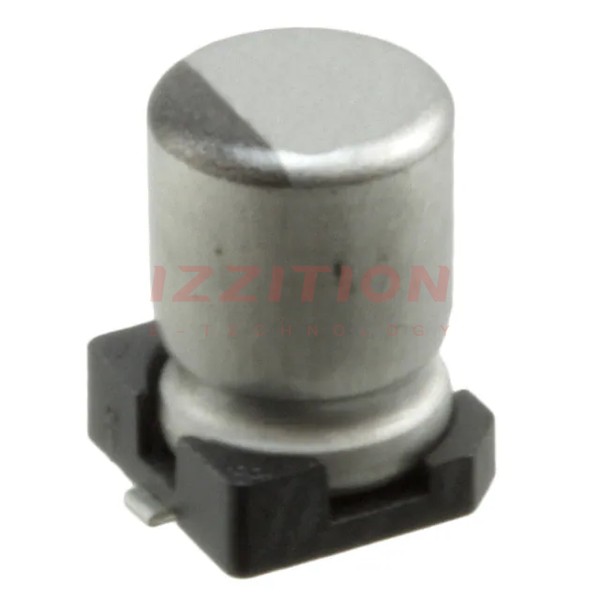

Nichicon UUT1H010MCL1GS
