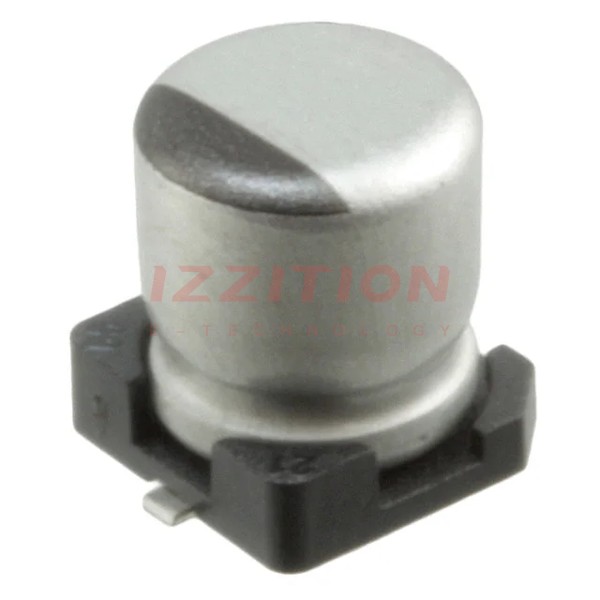

| Part Number | UUT0J470MCL1GS | UUT0G470MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz | 54 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
