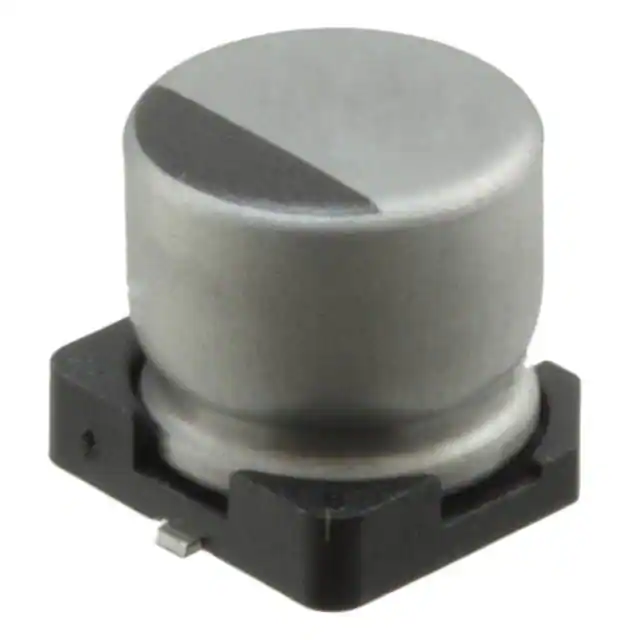

| Part Number | UUR1V330MCL1GS | UUX1V330MCL1GS | UUQ1V330MCL1GS | UUR1H330MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Active | Not For New Designs |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | - | Polar | Polar | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | Audio | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz | 76 mA @ 120 Hz | 59 mA @ 120 Hz | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 91.85 mA @ 10 kHz | 126.92 mA @ 10 kHz | 88.5 mA @ 10 kHz | 158.65 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.256" (6.50mm) | 0.244" (6.20mm) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
