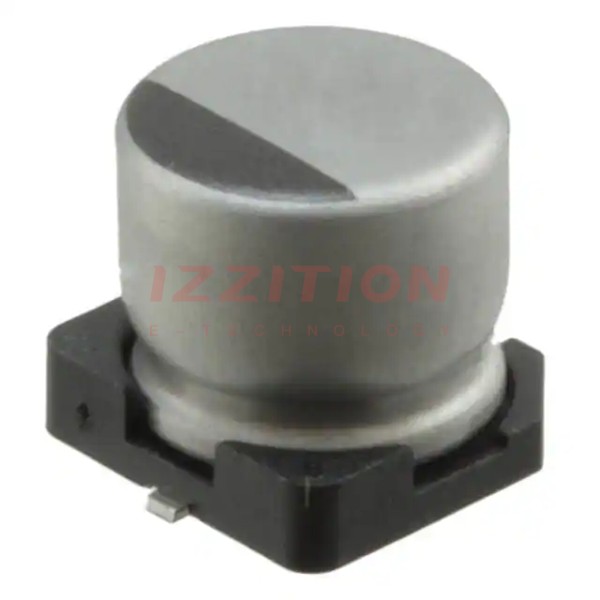

| Part Number | UUR1E470MCL1GS | UUX1E470MCL1GS | UUR1V470MCL1GS | UUQ1E470MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Not For New Designs | Active |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 35 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 105°C | 2000 Hrs @ 85°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Polarization | - | Polar | - | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Audio |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz | 79 mA @ 120 Hz | 105 mA @ 120 Hz | 66 mA @ 120 Hz |
| Ripple Current @ High Frequency | 108.55 mA @ 10 kHz | 131.93 mA @ 10 kHz | 175.35 mA @ 10 kHz | 99 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
