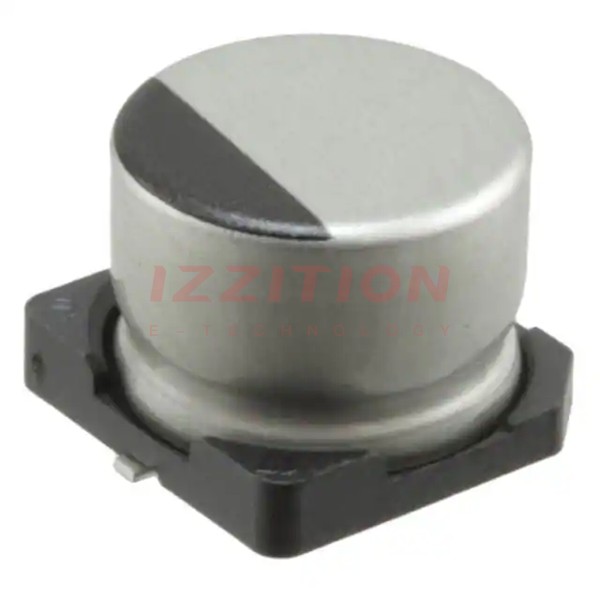

| Part Number | UUR0J331MCL1GS | UUR0J331MCL6GS | UUQ0J331MCL1GS | UUR0G331MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Active | Not For New Designs |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | - | - | Polar | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | Audio | General Purpose |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz | 188 mA @ 120 Hz | 102 mA @ 120 Hz | 152 mA @ 120 Hz |
| Ripple Current @ High Frequency | 247 mA @ 10 kHz | 244.4 mA @ 10 kHz | 153 mA @ 10 kHz | 197.6 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
