Nichicon-UUQ0J102MCL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	Audio
Ripple Current @ Low Frequency:	310 mA @ 120 Hz
Ripple Current @ High Frequency:	465 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.394" (10.00mm)
Surface Mount Land Size:	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

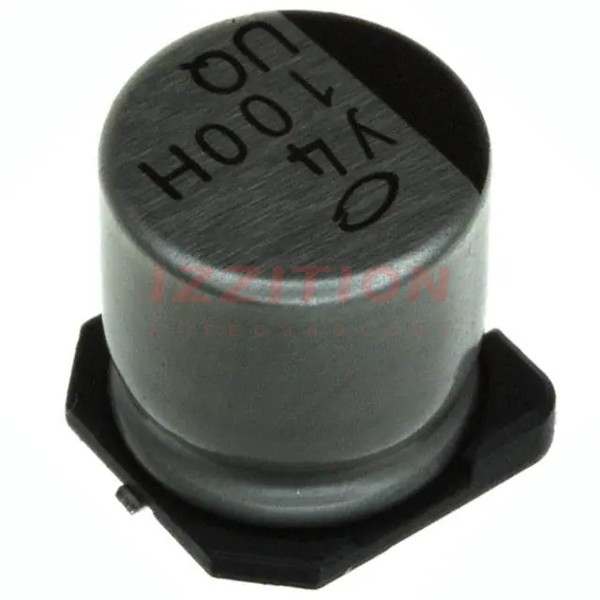

Nichicon UUQ0J102MCL1GS
