Please send RFQ , we will respond immediately.

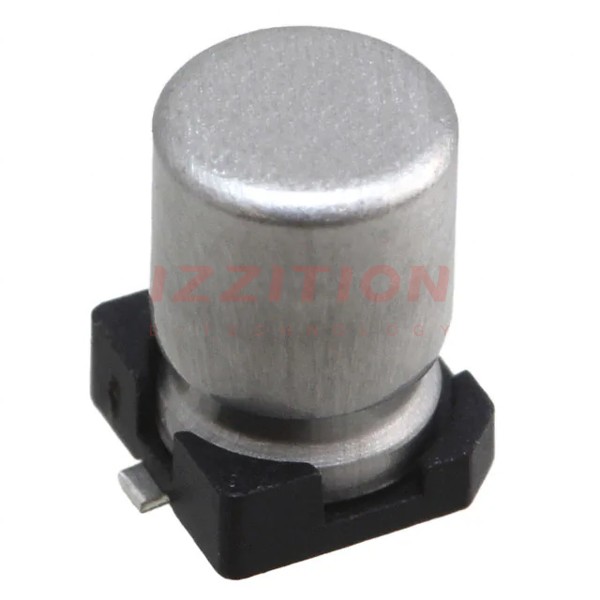

| Part Number | UUP1H0R1MCL1GS | UUL1H0R1MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Obsolete |
| Capacitance | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Bi-Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 1.5 mA @ 10 kHz | - |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
