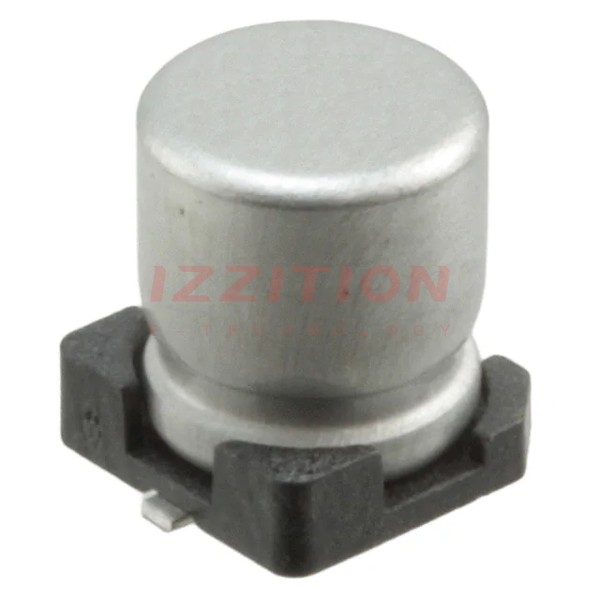

Nichicon-UUP0J220MCL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Bi-Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	28 mA @ 120 Hz
Ripple Current @ High Frequency:	42 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.240" (6.10mm)
Surface Mount Land Size:	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Nichicon UUP0J220MCL1GS
