Nichicon-UUJ2W3R3MNQ1ZD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	3.3 µF
Tolerance:	±20%
Voltage - Rated:	450 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	40 mA @ 120 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.571" (14.50mm)
Surface Mount Land Size:	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

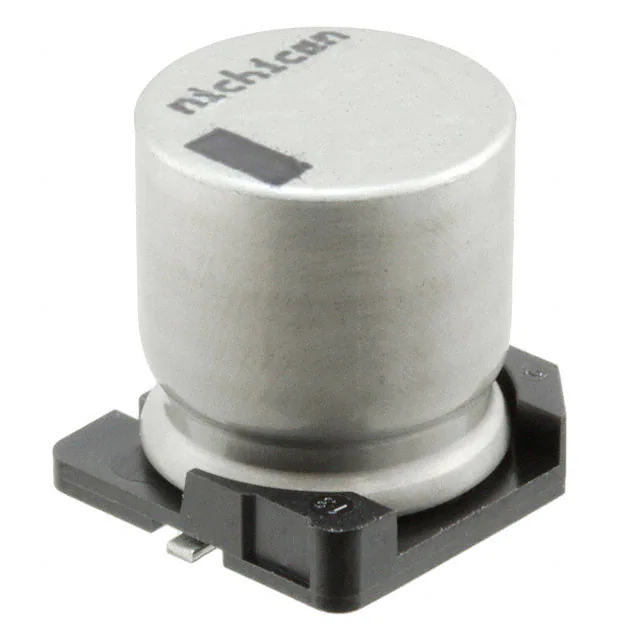

Nichicon UUJ2W3R3MNQ1ZD
