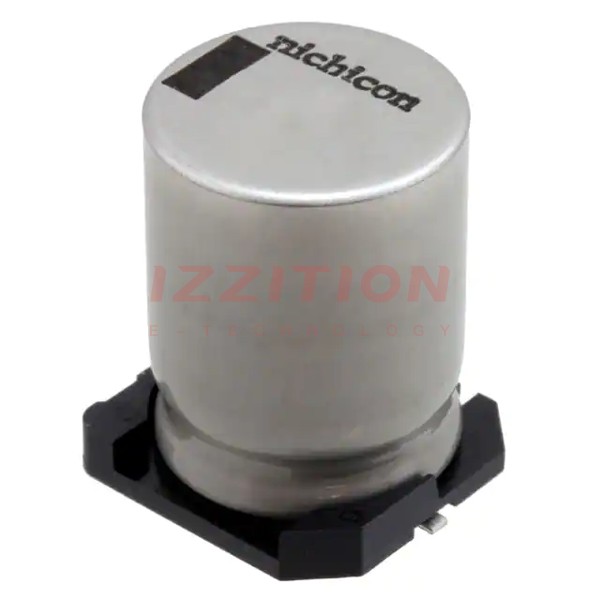

Nichicon-UUJ0J472MNQ1MS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.1 A @ 120 Hz
Ripple Current @ High Frequency:	1.265 A @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	0.886" (22.50mm)
Surface Mount Land Size:	0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Nichicon UUJ0J472MNQ1MS
