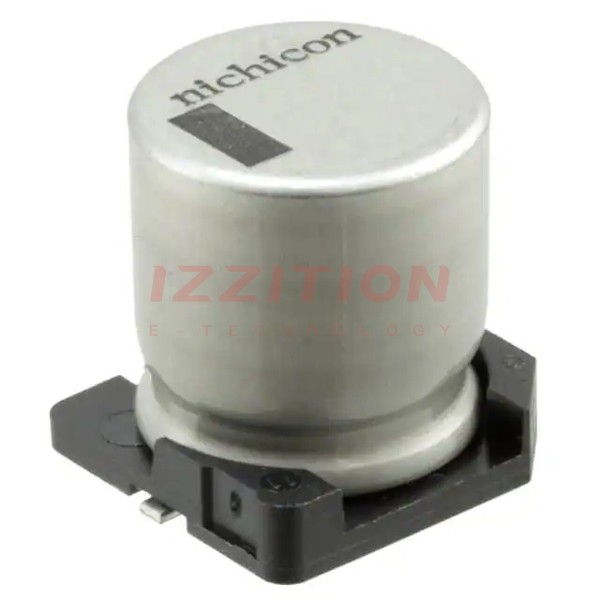

| Part Number | UUG0J682MNQ1MS | UUG0J682MNQ6MS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 6800 µF | 6800 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8975 A @ 10 kHz | 1.8975 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
