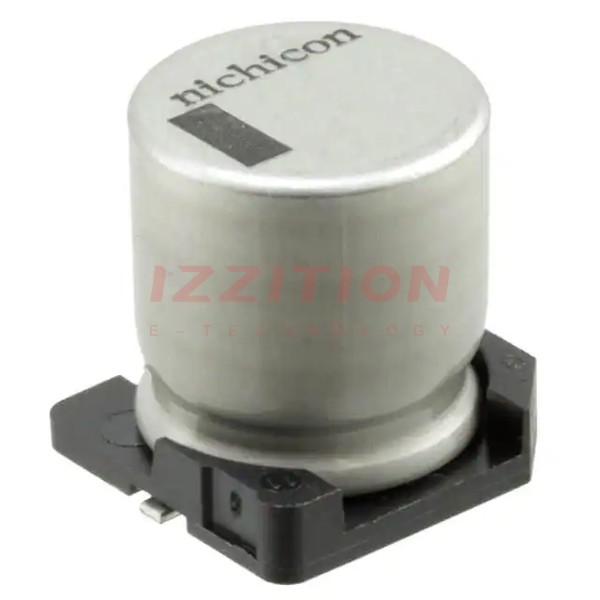

Nichicon-UUG0J472MNQ1MS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.4 A @ 120 Hz
Ripple Current @ High Frequency:	1.61 A @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	0.689" (17.50mm)
Surface Mount Land Size:	0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Nichicon UUG0J472MNQ1MS
