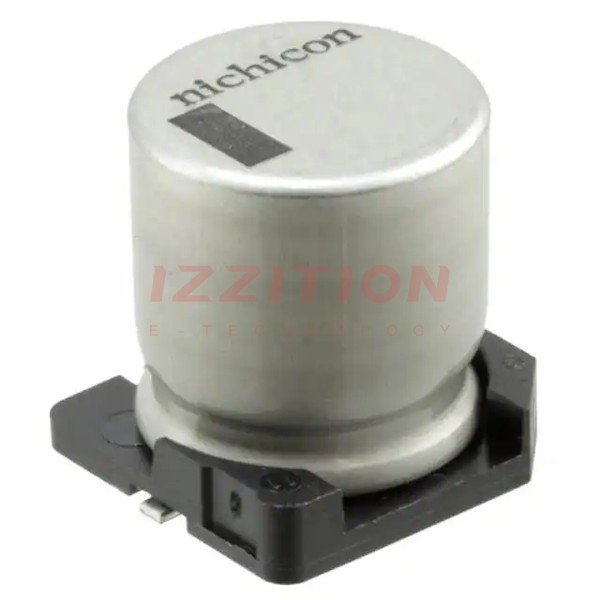

| Part Number | UUG0J332MNQ1ZD | UUG0J332MNQ6ZD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 10 kHz | 1.38 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
