Nichicon-UUG0J222MNQ1ZD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	890 mA @ 120 Hz
Ripple Current @ High Frequency:	1.0235 A @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.669" (17.00mm)
Surface Mount Land Size:	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

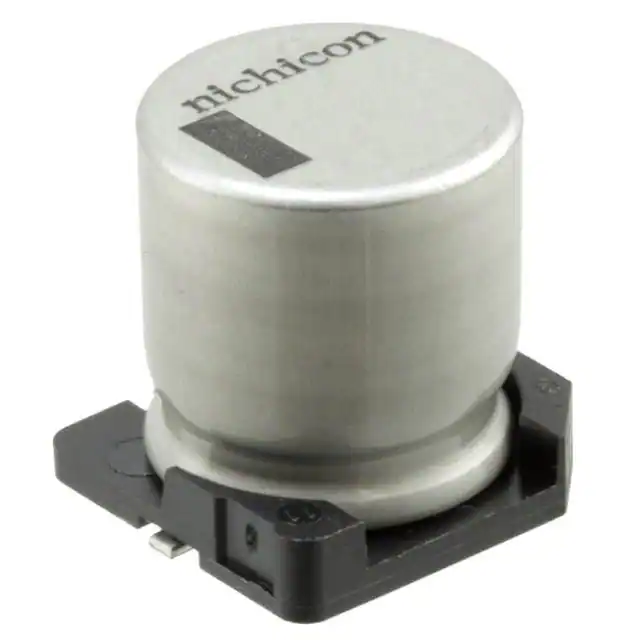

Nichicon UUG0J222MNQ1ZD
