UUD0J221MCL1GS
  • Share:

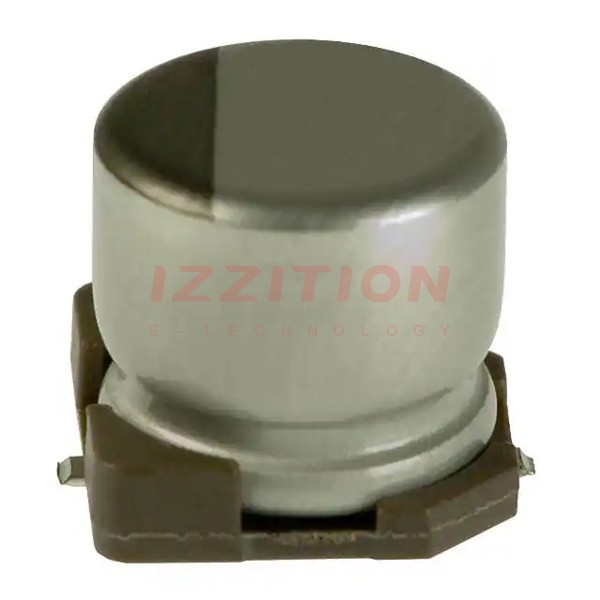

Nichicon UUD0J221MCL1GS

Manufacturer No:
UUD0J221MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
UUD0J221MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM 220UF 20% 6.3V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:220 µF
Tolerance:±20%
Voltage - Rated:6.3 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:115 mA @ 120 Hz
Ripple Current @ High Frequency:230 mA @ 100 kHz
Impedance:440 mOhms
Lead Spacing:-
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.228" (5.80mm)
Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$0.54
1,398

Please send RFQ , we will respond immediately.

Similar Products

Part Number UUD0J221MCL1GS UUD0J221MCR1GS   UUA0J221MCL1GS
Manufacturer Nichicon Nichicon Nichicon
Product Status Active Obsolete Active
Capacitance 220 µF 220 µF 220 µF
Tolerance ±20% ±20% ±20%
Voltage - Rated 6.3 V 6.3 V 6.3 V
ESR (Equivalent Series Resistance) - - -
Lifetime @ Temp. 2000 Hrs @ 105°C 2000 Hrs @ 105°C 3000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Polarization Polar Polar Polar
Ratings AEC-Q200 AEC-Q200 -
Applications Automotive Automotive General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz 115 mA @ 120 Hz 120 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz 230 mA @ 100 kHz 180 mA @ 10 kHz
Impedance 440 mOhms 440 mOhms -
Lead Spacing - - -
Size / Dimension 0.248" Dia (6.30mm) 0.248" Dia (6.30mm) 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm) 0.228" (5.80mm) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm) 0.260" L x 0.260" W (6.60mm x 6.60mm) 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Radial, Can - SMD Radial, Can - SMD Radial, Can - SMD
