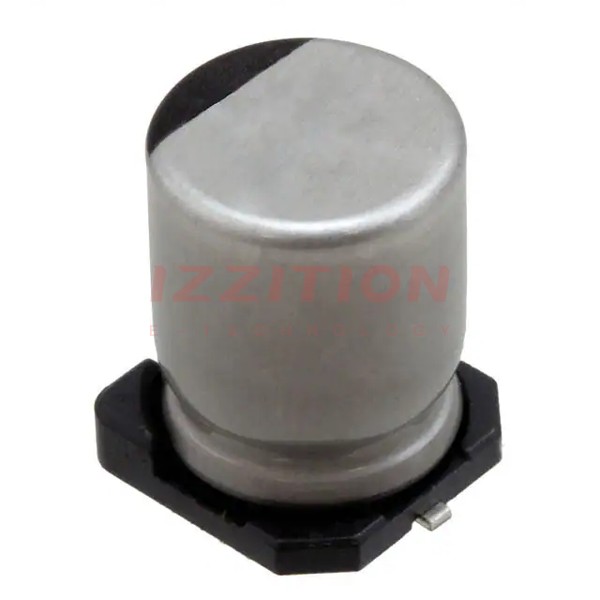

| Part Number | UUB1H330MNL1GS | UUA1H330MNL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 125°C | -55°C ~ 105°C |
| Polarization | - | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 210 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
