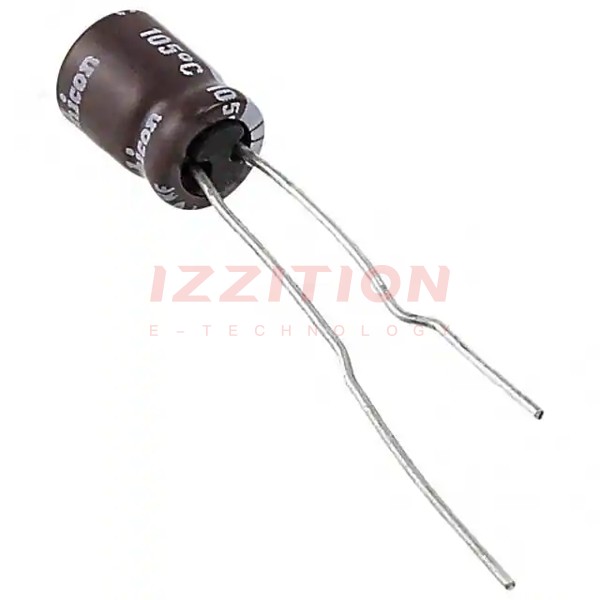

| Part Number | UTT1H4R7MDD | UTT1V4R7MDD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Last Time Buy | Last Time Buy |
| Capacitance | 4.7 µF | 4.7 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | - | - |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 11.1 mA @ 120 Hz | 11.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37 mA @ 100 kHz | 37 mA @ 100 kHz |
| Impedance | 14 Ohms | 7.4 Ohms |
| Lead Spacing | 0.079" (2.00mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
