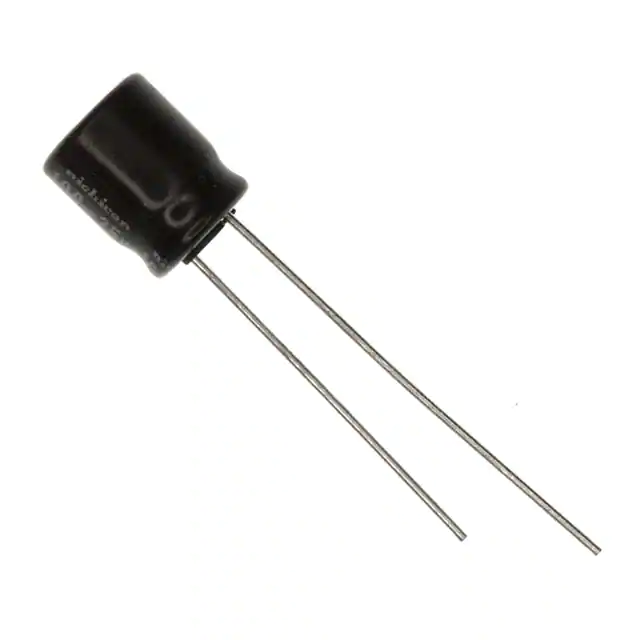

| Part Number | UTT1E221MPD | UTT1A221MPD | UTT1C221MPD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy |
| Capacitance | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 178.8 mA @ 120 Hz | 138 mA @ 120 Hz | 138 mA @ 120 Hz |
| Ripple Current @ High Frequency | 298 mA @ 100 kHz | 230 mA @ 100 kHz | 230 mA @ 100 kHz |
| Impedance | 400 mOhms | 680 mOhms | 680 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.354" (9.00mm) | 0.354" (9.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
