Please send RFQ , we will respond immediately.

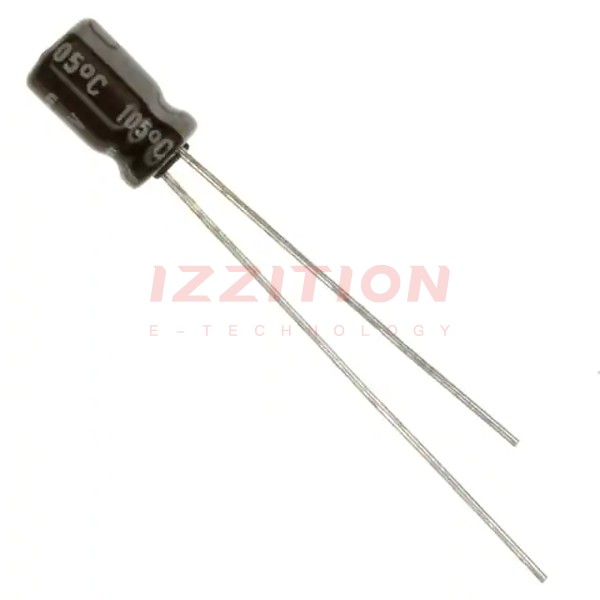

| Part Number | UTT0J220MDD | UTT0J221MDD | UTS0J220MDD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Last Time Buy | Last Time Buy | Obsolete |
| Capacitance | 22 µF | 220 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | - | - | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 18.4 mA @ 120 Hz | 97.8 mA @ 120 Hz | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 46 mA @ 100 kHz | 163 mA @ 100 kHz | 40 mA @ 100 kHz |
| Impedance | 7.4 Ohms | 1.1 Ohms | - |
| Lead Spacing | 0.059" (1.50mm) | 0.098" (2.50mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.354" (9.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
